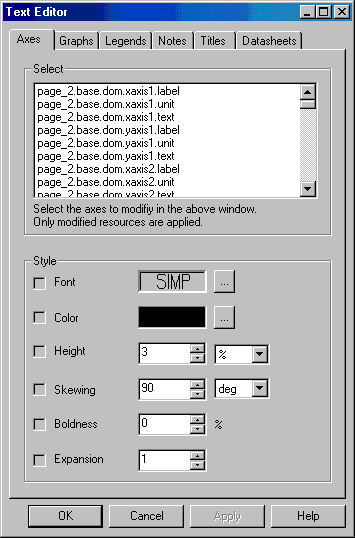

Text Editor

The Text Editor allows you to control all the text resources within your plot from a single editor. Not only in Notes and Titles, but also the text that is included within Legends, Graphs, Axes and Datasheets. To display the text editor click on its icon in the toolbar or select Text from the Edit menu.

You must first select the objects that you would like to change. Objects are selected using the standard Windows methods. (single click to select, ctrl-click to toggle and shift-click to select a series).

Now set the resources that you would like to modify in all the selected objects. If you do not modify a resource in the text editor, then the value of the resource for the selected objects will not be affected.

Click OK to apply the changes.

N.B. You can set different values for the text resources for each type of text object. For example you can select some axes texts to set to blue and then select some note texts and set these to red. When you click on OK, both groups of objects will be modified.
